Raymarine RAY53 VHF Radio

  • Sale
  • Regular price $510.99

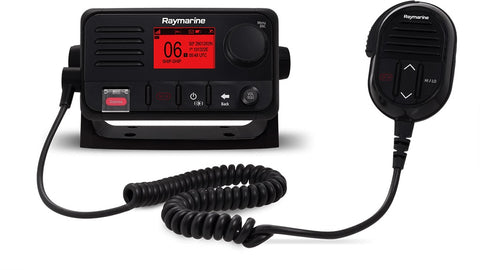

Raymarine RAY53 Compact VHF With GPS

Model: E70524
  • Compact marine VHF with Digital Selective Calling
  • Built-in GPS/GNSS receiver with a connection point for an optional external antenna
  • NMEA2000 and NMEA0183 networking for integration with onboard systems
  • Audio output connection for optional passive remote speaker (A80542)
  • Surface and trunnion mount kits included
  • Styled to compliment the Axiom family of multifunction displays

Raymarine’s Ray53 radio is small in size but big on features and performance. Ray53 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC.

Specifications
Enviromental Specifitcations
Operating Temperature -20 C (-4 F) to +60 C (140 F)
Storage Temperature -25 C (-13 F) to +70 C (158 F)
Relative Humidity 95%
Water Proofing IPx6 & IPx7
Connections 1x NMEA 0183
1x SeaTalkng ® / NMEA 2000
1x Audio (RCA)
1x GNSS (GPS) antenna (TNC)
Power
Nominal Supply Voltage 12 V dc (Reverse polarity and over voltage protection)
Operating Voltage Range 9 Vdc to 16 Vdc
Current Consumption Less than 6 A at high power (13.6 V)
Standby: 600 mA
Receive: 2 A
Transmitter
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Frequency Stability +/- 1.5 ppm
Channel Spacing 12.5 kHz
Power Output Low power setting - 1 W
High power setting - 25 W
Spurious missions Better than —36 dBm at 25 W (Less than 0.25 µW)
Maximum Deviation +/- 5 kHz
Antenna Impedance 50 Ohms (typical)
Receiver
Receiver Type Double conversion super heterodyne
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Sensitivity Better than 1 microvolt EMF @20dB SINAD
Squelch Sensitivity Less than - 2 dBµ EMF
Hum and Noise Better than —40 dB
Audio Distortion Less than 10%
Receiver Sensitivity Distance - 119dBm (0.25uV) @ 12dB SINAD (typical)
Local - 110dBm (0.7uV) @12dB SINAD (typical)
Adjacent Channel Selectivity More than 70 dB
Spurious Response Rejection More than 70 dB
Inter Modulation Rejection More than 70 dB
GPS
Channels 72
Cold Start <2 minutes
Receiver IC Sensitivity —167 dBm (Tracking) / —148 dBm (Acquisition)
GNSS Compatibility GPS
GLONASS
*Beidou
SBAS Compatibility WAAS
EGNOS
MSAS
Special Features Active Jamming and Interference Reduction
Operating Frequency GPS L1 C/A
GLONASS L10F
Beidou B1
Signal Acquisition Automatic
Almanac Update Automatic
Geodetic Datum WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate 10 Hz (10 times per second Concurrent GNSS)
Antenna Internal - Ceramic chip mounted near top of unit
External - Passive antenna connection via TNC connector
Position Accuracy Without SBAS: <= 15 metres 95% of the time - With SBAS: <= 5 metres 95% of the time

What's in the Box:
  • Ray53 VHF DSC Radio
  • Sun cover
  • Panel mount gasket
  • Mounting bracket (Trunnion)
  • Mounting bracket knobs
  • Fistmic hook plate
  • 4 x M4x25 screws (For Bracket (Trunnion) mounting)
  • Documentation
  • 4 x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting)
  • Protective antenna boot
  • 2 x M4x12 screws (For Fistmic hook plate mounting)
  • SeaTalkng ® blanking plug
  • SeaTalkng ® 400 mm (15.7 in.) spur cable
