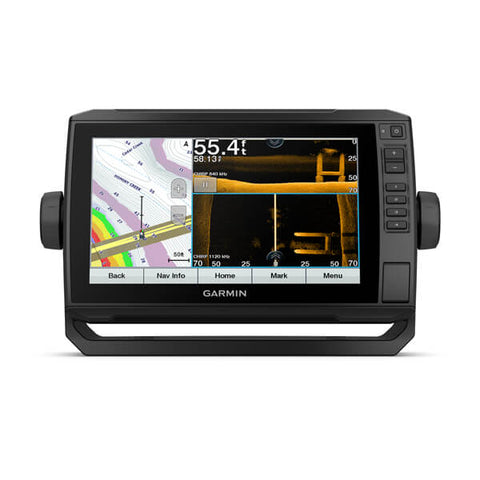

Garmin ECHOMAP UHD 93sv Reman Combo US Lakevu g3 with GT54 Transducer

  • Sale
  • Regular price $639.99


Garmin ECHOMAP 93sv UHD Combo US Lakevu g3 with GT54 Transducer - Remnufactured

Model: 010-n2342-01
  • See below and around your boat in incredible detail with optional transducer
  • Navigate any waters with preloaded LakeVü g3 inland maps
  • Share data with other devices on your network (7" and 9" models only)
  • Manage your marine experience from nearly anywhere
  • Control the most powerful trolling motor available
  • Create your own maps on the fly and tailor them to fit your needs

The sunlight-readable 9" touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 17,000 lakes with up to 1’ contours.

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7" and 9" models only).

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.

Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.

Specifications
General
Physical dimensions 11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm)
Display size 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution 400 x 800 pixels
Display type WVGA display
Weight 2.3 lbs (1.0 kg)
Water Rating IPX7
Power consumption 18W
Antenna Internal or external over NMEA 2000
Mounting options Bail or flush
Receiver 5 Hz
Garmin Marine Network™ ports 1 Panoptix™ port
Maps & Memory
Preloaded maps LakeVü g3 (inland maps)
Accepts data cards 1 microSD™ card; 32 GB maximum size
Waypoints 5,000
Routes 100
Track log 50,000 points; 50 saved tracks
Outdoor Recreation Features
Tide tables Yes
Chartplotter Features
Garmin Sonar compatible Yes
Supports AIS (tracks target ships position) Yes
Supports DSC (displays position data from DSC-capable VHF radio) Yes
GCV™ Black Box sonar support Yes
ActiveCaptain compatible Yes
Sailing Features Yes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable Yes
Dual-beam (77/200 kHz) sonar capable Yes
Transmit power 500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology Yes (Built-in)
ClearVü Yes with CHIRP (built-in)
SideVü Yes with CHIRP (built-in)
Maximum depth 2,300 ft @ 77 kHz, freshwater
Bottom lock (shows return from the bottom up) Yes
Water temperature log and graph Yes
Sonar recording Yes
Sonar history rewind Yes
Connections
NMEA 2000® compatible Yes
Transducer pin numbers 12
NMEA 0183 input ports 1
NMEA 0183 output ports 1
Video input ports None
Video output ports None
Wireless connectivity Yes

What's in the Box:
  • Garmin ECHOMAP 93sv UHD Combo US Lakevu g3 - Remanufactured
  • GT54UHD-TM transducer
  • Power/data cable
  • Tilt/swivel mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation
