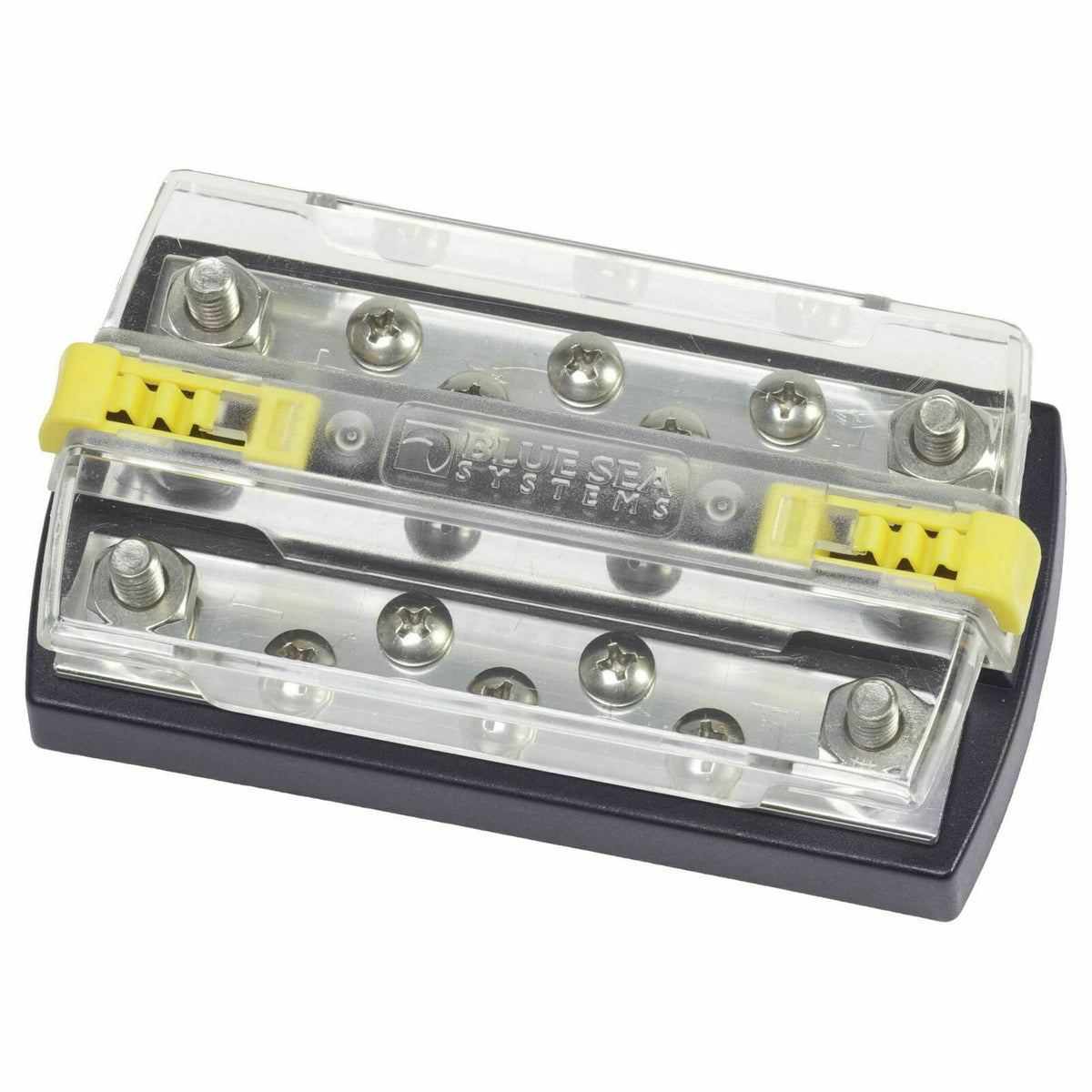

Blue Sea 2722 DualBus Plus 150A BusBar 1/4"-20 Stud 5 Gang Marine Boat
Blue Sea 2722 DualBus Plus 150A BusBar 1/4"-20 Stud 5 Gang Marine Boat
Regular price
$29.99 USD
Regular price
Sale price
$29.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Blue Sea Systems 2722 DualBus Plus 150A BusBar combines a positive and a negative bus in one compact block. It gives you a clean, insulated place to add new electrical loads on a boat or RV.
Key benefits
- Positive and negative buses on one block
- 150 A DC / 130 A AC continuous rating
- 5 screw terminals and 2 studs per bus (#10-32 screws, 1/4"-20 studs)
- Clear polycarbonate snap-on cover meets Coast Guard and ABYC insulation requirements
- Tin-plated copper bus on a UL 94-V0 rated base
Specifications
| Brand | Blue Sea Systems |
|---|---|
| Part number | 2722 |
| Continuous rating | 150 A DC / 130 A AC |
| Maximum voltage | 48 V DC / 300 V AC |
| Terminals per bus | 5 screw (#10-32) + 2 studs (1/4"-20) |
| Bus material | Tin-plated copper |
| Base | UL 94-V0 glass-reinforced thermoplastic |
| Cover | Clear polycarbonate |
| Mounting screw | #10 (M5) |
| Torque | Screws 18 in-lb (2.03 Nm); studs 60 in-lb (6.78 Nm) |
| Weight | 0.61 lb (0.28 kg) |
What's in the box
- Blue Sea 2722 DualBus Plus with cover
FAQ
Why use a DualBus?
A DualBus gives you an organized, insulated junction for both positive and negative wires when you add electronics like a stereo, fish finder or GPS.
Is there a warranty?
It's covered by Blue Sea Systems' manufacturer's warranty.
