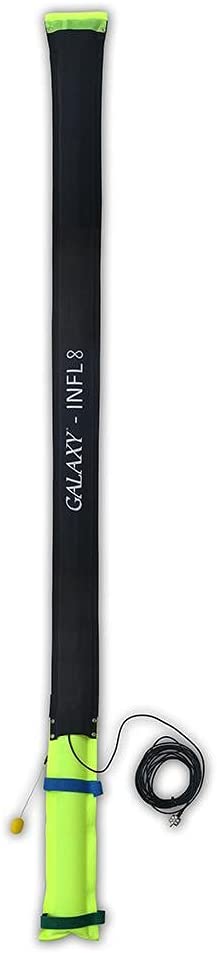

Shakespeare INFL8-5 Galaxy-INFL8 VHF Inflatable Emergency Antenna, Colorful
Shakespeare INFL8-5 Galaxy-INFL8 VHF Inflatable Emergency Antenna, Colorful
Couldn't load pickup availability

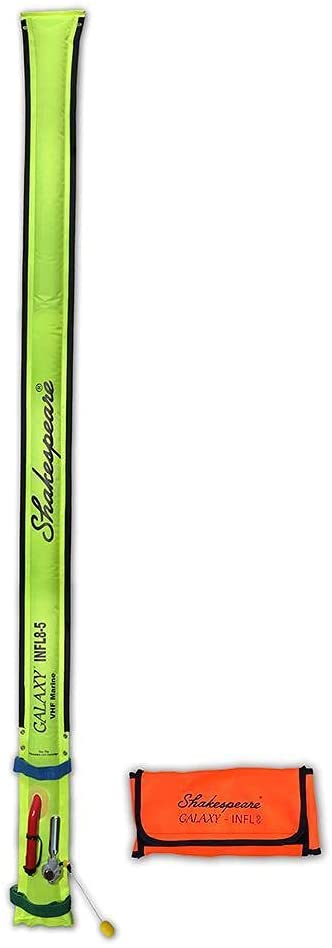

The Shakespeare Galaxy-INFL8 (INFL8-5) is an inflatable emergency VHF antenna for boats. Pull the CO2 cartridge and it inflates to a full 5 ft (1.6 m) 3 dB antenna in seconds. That gives up to three times the range of a typical stubby helical emergency antenna. When you're done, deflate it and stow it in its bright storage bag until you need it again.
Why carry one
- A true backup if your main VHF antenna or mast is damaged
- Full 3 dB gain, 5 ft tall when inflated
- Inflates with a 16 g threaded CO2 cartridge, or by mouth with the manual tube
- Mounts with built-in hook-and-loop straps to stanchions, outriggers or other vertical structures
- Grommets top and bottom so you can hang or tie it even if the bladder is damaged
- Works with fixed VHF radios (PL-259) and handhelds (SMA adapter included)
Specifications
| Brand | Shakespeare |
| Model | Galaxy-INFL8, INFL8-5 |
| Band | VHF marine, 156–162 MHz (within 2.0:1 VSWR) |
| Gain | 3 dB |
| Height inflated | 5 ft (1.6 m) |
| Max power | 50 W |
| SWR | Nominally 1.5:1 at 156.8 MHz |
| Polarization | Vertical, omnidirectional |
| Impedance | 50 ohms, DC grounded |
| Inflation time | More than 24 hours per cartridge |
| Cable | 20 ft (6 m) RG-174 with PL-259 installed |
| Also included | SMA male adapter for handhelds, solderless UHF female splice connector, storage bag |
FAQ
Can I inflate it without a CO2 cartridge?
Yes, with the manual tube. When inflated by mouth it is not rigid enough to stand on its own, so support it at the top and bottom.
Is it a flotation or distress device?
No. It is not a personal flotation device or a visual distress signal, and it is not meant to be submerged.
