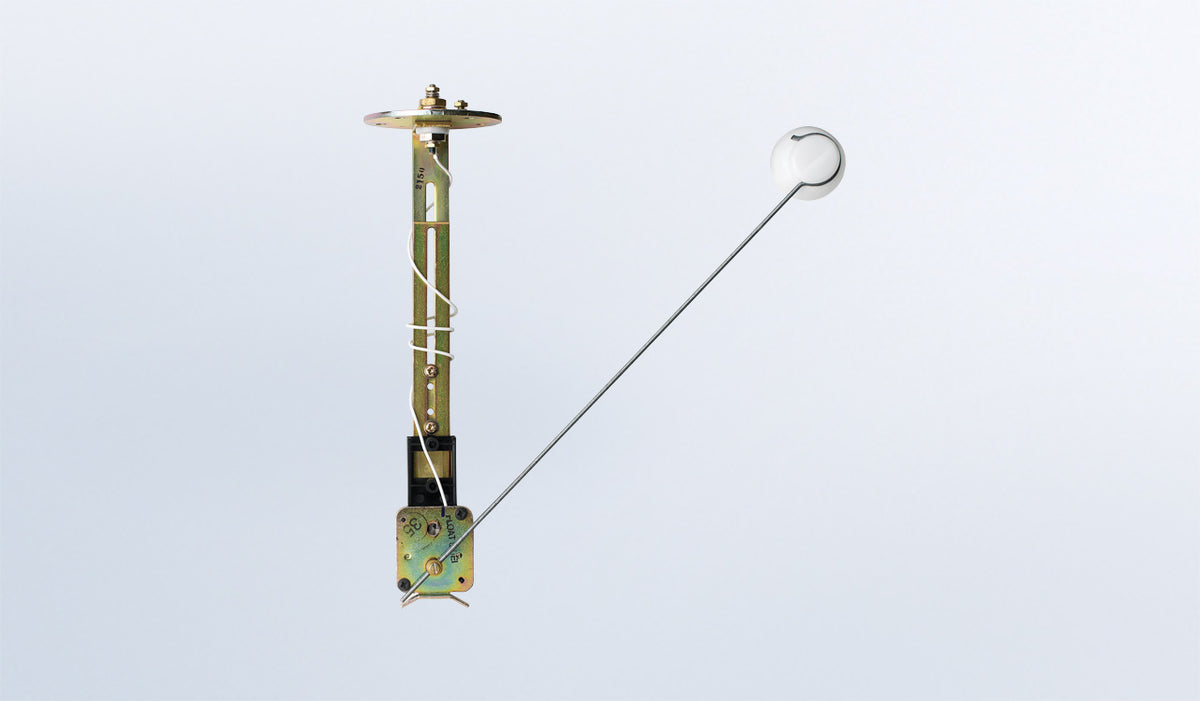

VDO 226-008 Adjustable Fuel Sender 0-90 Ohm
VDO 226-008 Adjustable Fuel Sender 0-90 Ohm
Couldn't load pickup availability
The VDO 226-008 Adjustable Fuel Sender 0-90 Ohm is a genuine VDO sender (Continental description: SENDER FUEL ADJ 0-90OHM).
ALAS Adjustable Fuel Sender 6 3/4-23″, 0-90 Ohm (most GM) Designed for severe duty use, each of these senders contains an SAE standard five hole metal mounting flange and body components which can be adjusted from 6″ to 23″ tank depth. Adaptable to right hand or left hand swing arm. Each contains thick film resistor technology for greater resistance to wear associated with standard wire wound units.
Specifications
| Brand | Continental / VDO |
|---|---|
| Part number (MPN) | 226-008 |
| UPC | 754059001050 |
| Continental description | SENDER FUEL ADJ 0-90OHM |
| Output Type | analog |
| Connection | m4 stud |
| Voltage | 6-24V |
| Housing Material | Plated Steel |
| Sender Table | ALAS |
| Component Reference | 1-551-004-161D |
| Warning Contact | No |
| OHM Range | 0-90 Ohm |
| Mounting Diameter | 54mm |
| Mounting Depth US | 6 3/4-23inches |
| Mounting Depth Metric | 171mm to 584mm |
| Installation Orientation | LH or RH |
| Type | Fuel Level Sender |
| ALAS Fuel Sender Depth Range | 168 to 575mm |
| Replacement Fuel Sender Arm | 226-479 |
| Replacement Fuel Sender Mounting Gasket | 226-053 |
Speedstuff is an authorized Continental/VDO distributor. Same-day shipping on in-stock orders placed by 2 PM PT.
FAQ
Is this a genuine part?
Yes. Speedstuff is an authorized Continental/VDO distributor, so you receive a genuine, new 226-008.
How fast will it ship?
In-stock orders placed by 2 PM PT ship the same business day.
Will it work with my setup?
Compare the specifications above (range, thread, voltage, size) with your application. If you are unsure, contact us with your part number before ordering.
