VDO

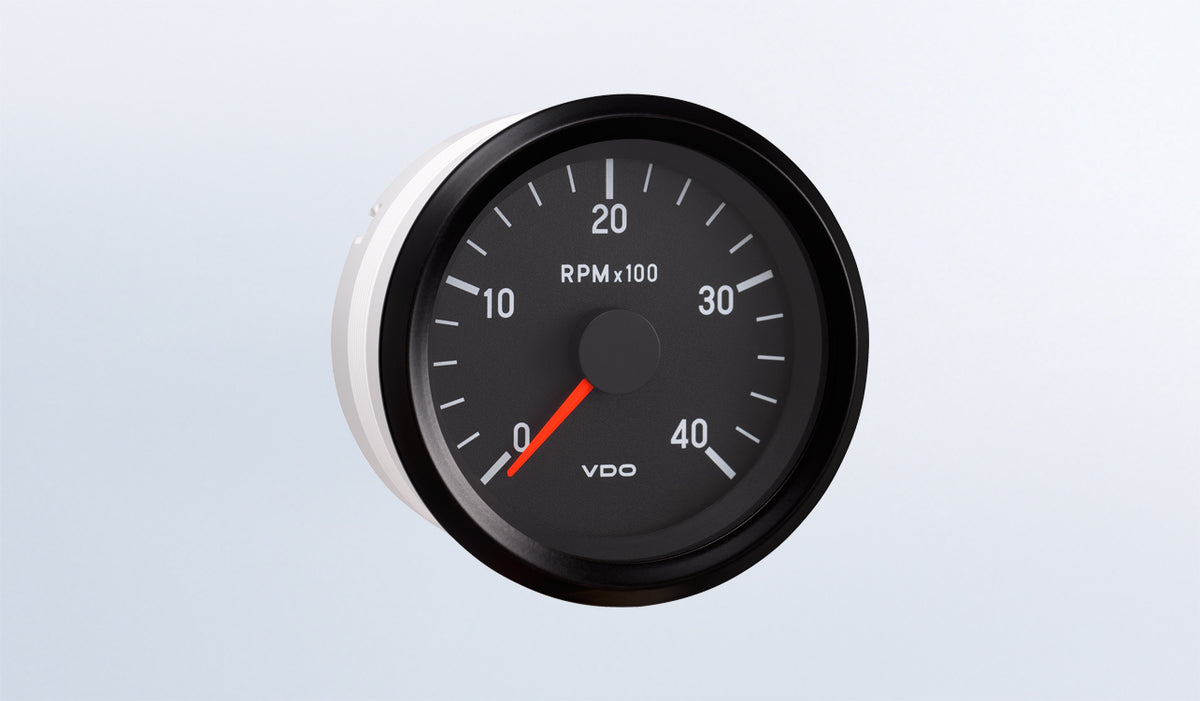

VDO 333-969 4,000 RPM 2 1/16" (52mm) Tachometer, 12V, 400-1300Hz Alternator Signal
VDO 333-969 4,000 RPM 2 1/16" (52mm) Tachometer, 12V, 400-1300Hz Alternator Signal
Couldn't load pickup availability
The VDO 333-969 4,000 RPM 2 1/16" (52mm) Tachometer, 12V, 400-1300Hz Alternator Signal is a genuine VDO gauge (Continental description: GAUGE TACH ALT 4000RPM 52MM 400-1300HZ C).
Cockpit International 4,000 RPM 2 1/16″ (52mm) Tachometer, 12V, 400-1300Hz Alternator Signal For use on 4,5,6 & 8 cylinder application engines with standard coil ignitions, most square wave electronic control ignitions with tachometer output terminal and alternators with “w” tachometer terminal. World-class Cockpit International instruments are the standard in the industry for reliability and economy.
Specifications
| Brand | Continental / VDO |
|---|---|
| Part number (MPN) | 333-969 |
| UPC | 754059050430 |
| Continental description | GAUGE TACH ALT 4000RPM 52MM 400-1300HZ C |
| Input Type | analog |
| Diameter (US) | 2 1/16 in |
| Diameter (Metric) | 52mm |
| Dial Scale | single |
| Min Range Outer Scale | 0 RPM |
| Max Range Outer Scale | 4000 RPM |
| Dial label | RPMx100 |
| Connection | .250" Spade |
| Voltage | 12V |
| Mounting Hardware | U-Bracket |
| Housing Material | Zinc Plated Steel |
| Dial Color | Black |
| Bezel Color | Black |
| Lighting Method | Bulb |
| Lighting Color | White |
| Lighting Type | Flood |
| Pointer Color | Red |
| Pointer Type | solid |
| Lens Material | Glass |
| Lens Construction | single |
| Water Protection | IP 64 |
| Type | Programmable Tachometers |
Speedstuff is an authorized Continental/VDO distributor. Same-day shipping on in-stock orders placed by 2 PM PT.
FAQ
Is this a genuine part?
Yes. Speedstuff is an authorized Continental/VDO distributor, so you receive a genuine, new 333-969.
How fast will it ship?
In-stock orders placed by 2 PM PT ship the same business day.
Will it work with my setup?
Compare the specifications above (range, thread, voltage, size) with your application. If you are unsure, contact us with your part number before ordering.
