VDO 350-7022 Oil Pressure 80 PSI Metric Kit - Cockpit Royale
VDO 350-7022 Oil Pressure 80 PSI Metric Kit - Cockpit Royale
Couldn't load pickup availability
The VDO 350-7022 is a complete Cockpit Royale electrical oil pressure gauge kit reading 0–80 PSI. It is the metric version of the kit, with a matched VDO sender and a set of metric and BSP adapters for European, Japanese and other metric-thread engines.
What's in the kit

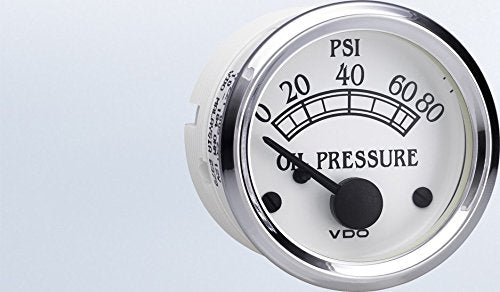

- VDO Cockpit Royale 2-1/16" (52 mm) oil pressure gauge, 0–80 PSI
- VDO oil pressure sender, 10–180 ohm range, 1/8-27 NPT thread
- Metric adapters: M16, M14, M12 x 1.0 and M10 x 1.0, plus a 1/8-28 BSP adapter
Specifications
| Brand | VDO (Continental) |
| Part number | 350-7022 |
| Series | Cockpit Royale |
| Range | 0–80 PSI, "OIL PRESSURE" on the dial |
| Type | Electrical, short sweep |
| Voltage | 12 V |
| Gauge size | 2-1/16" (52 mm) |
| Sender | 10–180 ohm, 1/8-27 NPT |
| Kit version | Metric (metric and BSP adapters) |
| UPC | 754059042954 |
Which kit do I need?
Pick the 350-7022 metric kit if your engine's oil pressure port has a metric or BSP thread. For NPT (pipe) thread engines, the VDO 350-7021 U.S. kit has the same gauge with NPT bushings.
FAQ
Is the sender included?
Yes. The kit includes a matched 10–180 ohm VDO sender, so there is nothing else to buy for a standard install.
Will it work on a 24 V system?
No. This kit is for 12 V systems.
