VDO 360 006 Gauge Pressure Sender
VDO 360 006 Gauge Pressure Sender
Couldn't load pickup availability

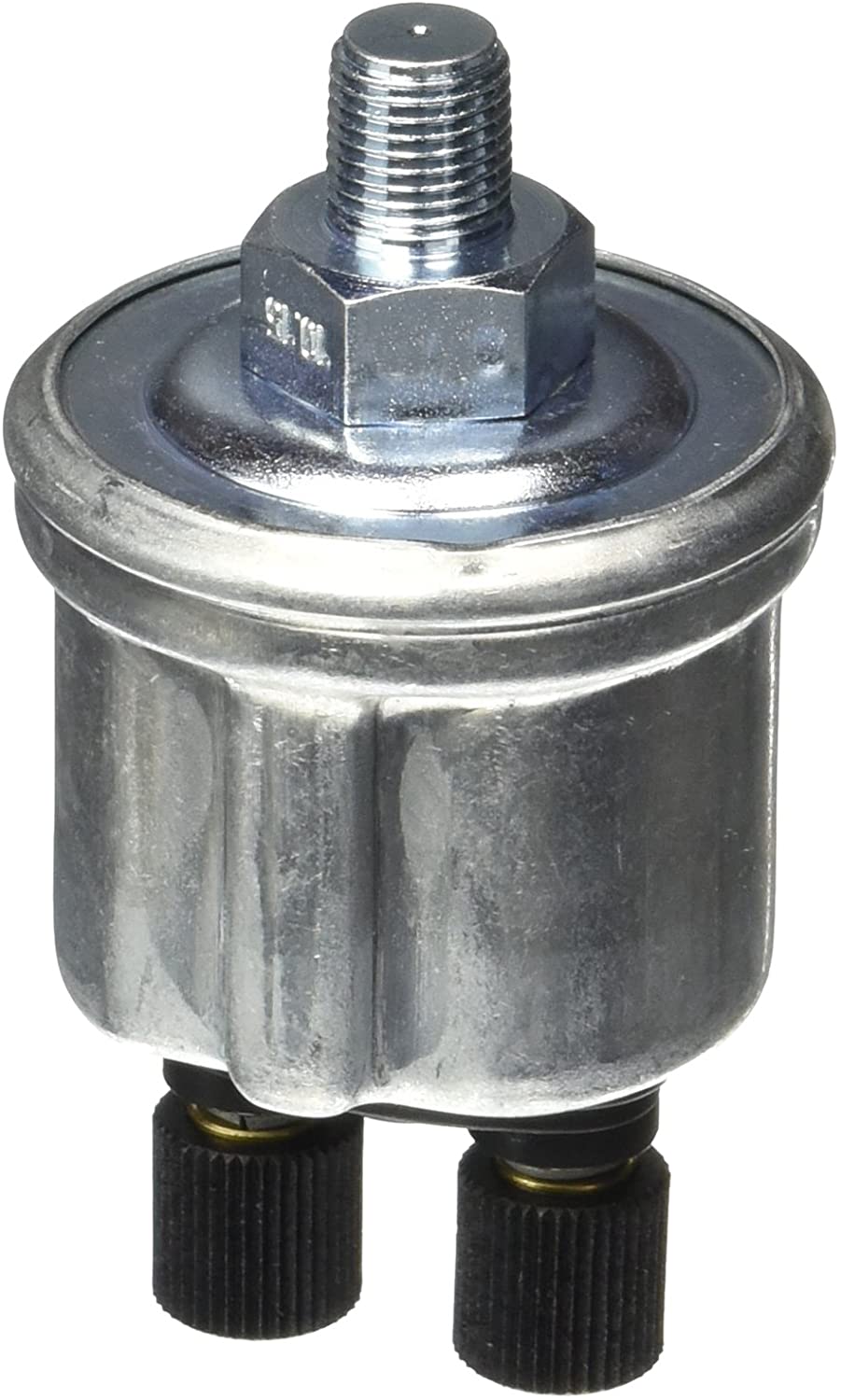

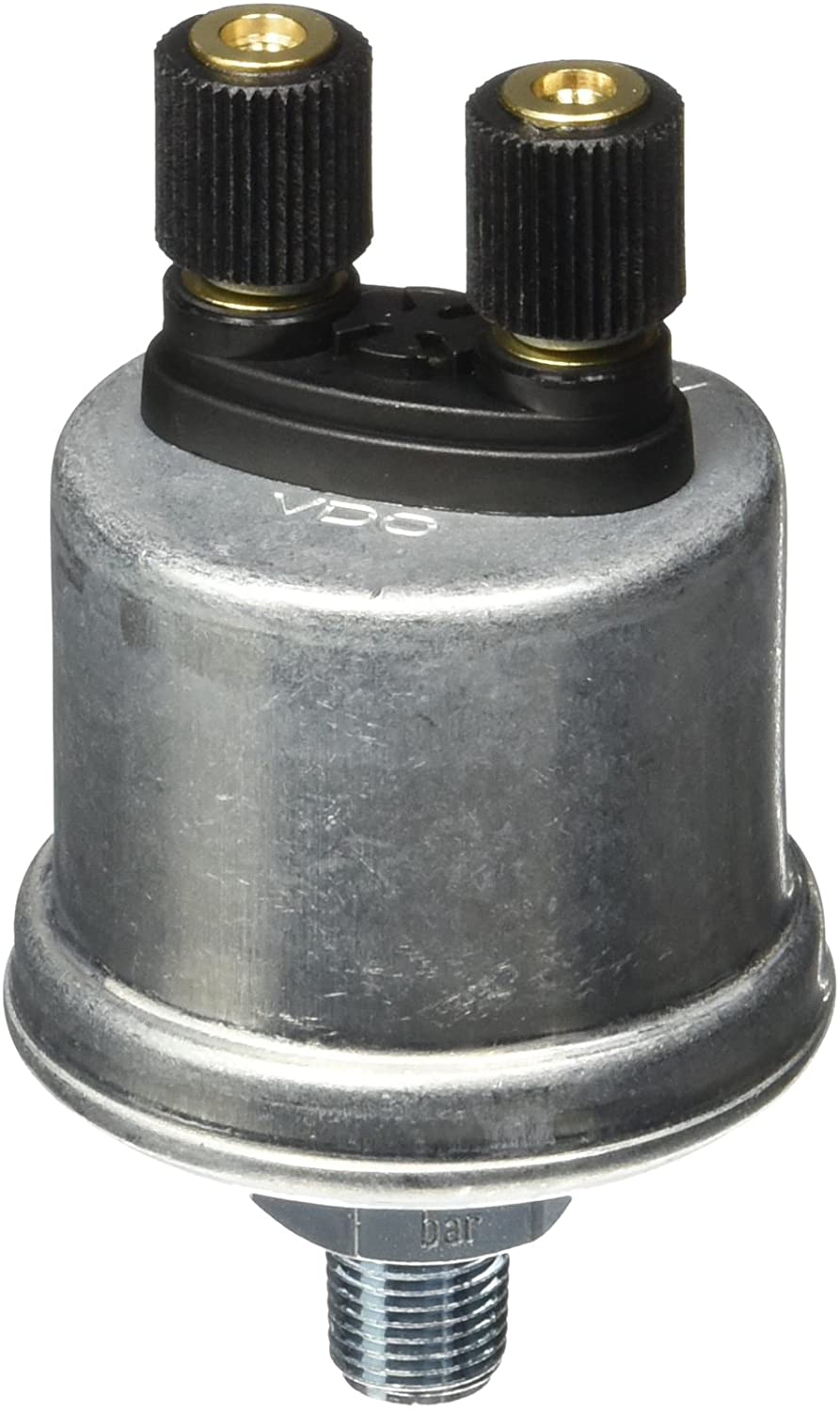

The VDO 360-006 oil pressure sender is a genuine VDO 80 PSI (5 bar) sender for VDO electric pressure gauges. It has a built-in 7.0 PSI warning contact, so it can also trigger a low-pressure warning light or alarm. It has a M10 x 1.0 (taper) thread.
Key benefits
- 80 PSI / 5 bar range for VDO 80 PSI electric gauges (10-180 ohm)
- Built-in warning contact that switches at 7.0 PSI to drive a low-oil-pressure light or buzzer
- Genuine VDO part, built to VDO OEM standards
- Standard ground: the sender case grounds to the engine
Specifications
| Brand | VDO (Continental) |
|---|---|
| Part number | 360-006 |
| Type | Pressure sender with warning contact |
| Range | 80 PSI / 5 bar |
| Resistance | 10-180 ohm |
| Warning contact | 7.0 PSI |
| Thread | M10 x 1.0 (taper) |
| Ground | Standard |
| Terminals | Knurled nut |
| Max installation torque | 30 Nm (22 ft-lb) |
What's in the box
- VDO 360-006 pressure sender
FAQ
Will it work with my gauge?
It's made for VDO 80 PSI electric pressure gauges (10-180 ohm). Check your gauge's range and your engine's thread before you order.
Do I need thread sealant?
No. VDO says not to use Teflon tape or sealant on its senders, because it causes grounding problems and wrong readings.
Is there a warranty?
It's covered by VDO's manufacturer's warranty. Speedstuff is an authorized Continental/VDO distributor, so you're getting genuine VDO parts.
